    Popularized Galvanised Corrugated Roofing Sheets Environmental Protection

    Ask Lasest Price
    Brand Name : JIN LAI
    Model Number : SGCC/SGCD/CGCC/S250GD/S280GD/S350GD/G550/DX51D+Z/DX
    Certification : ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 5000 tons per month
    Delivery Time : within 15 days
    • Product Details
    • Company Profile

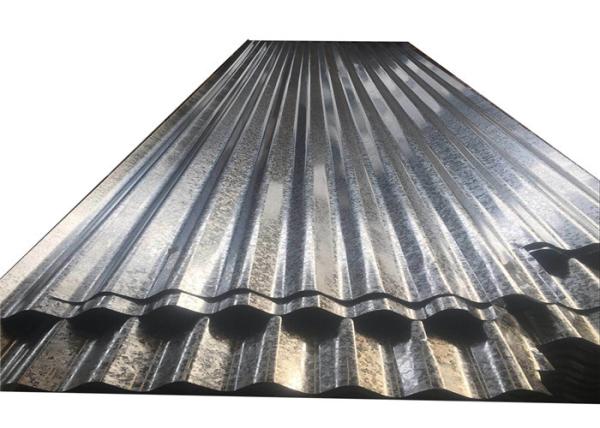

    Popularized Galvanised Corrugated Roofing Sheets Environmental Protection

    Color Coated Galvanized Steel Sheet Pile Corrugated Metal Roofing Sheet PPGI Sheet


    Color steel tile, also known as: color pressure tile, is the use of color coated steel plate, through the roll cold bending into a variety of wave pressure plate.


    It is suitable for industrial and civil buildings, warehouses, special buildings, large-span steel structure of the roof, wall and the decoration of internal and external walls, with light weight, high strength, rich color and lustre, convenient and fast construction, seismic, fire, rain, long life, maintenance free and so on characteristics, has been widely promoted and applied.


    Galvanized steel sheet is electroplated from an electroplating solution composed of 55% aluminum, 43.4% zinc and 1.6% silicon. Its workability and paintability are basically the same as galvanized steel sheet. The aluminized zinc coating is anti-fingerprint coating. The anti-fingerprint coating protects the aluminized zinc coating. At the same time, the anti-fingerprint coating can make the aluminized zinc steel plate and colored sand grains better adhere. Divided into colorless transparent and light green.

    Colored sand is the decorative layer and protective layer of the base of the metal tile. It is made of basalt particles with a certain particle size through high-tech coloring process and high-temperature sintering. With more than ten colors, it is resistant to ultraviolet radiation and can reduce the noise caused by rain to metal tiles. Acrylic resin is the key material for bonding steel plates and colored sand, and also serves as a protective layer on the surface of sand mining to prevent the leakage of fine rain and extend the life of sand color.


    1. Rich color:Beautiful shape, rich color, strong decorative, flexible combination, can express different architectural styles;
    2. Light weight:Light weight (6-10 kg/m_) high strength (yield strength 250-550 MPa), good skin stiffness, good anti-seismic performance of waterproofing agent.
    3. Safe and convenient:Construction and installation is convenient, reducing installation and transportation workload, and shortening construction period.
    4. Environmental protection:Recyclable and popularized application of profiled steel sheet to meet the sustainable development policy of the national economy.

    CommodityCorrugated roofing sheets
    base steelGalvanized steelGalvalume steelPPGIPPGL
    Thickness
    (mm)
    0.13-1.50.13-0.80.13-0.80.13-0.8
    Width
    (mm)
    750-1250750-1250750-1250750-1250
    Surface
    treatment
    ZincAluzinc coatedRAL color coatedRAL colorcoated
    StandardISO,JIS,ASTM,AS,EN
    GradeSGCC, SGHC ,DX51D;
    SGLCC,SGLHC;
    CGCC,CGLCC
    Width(mm)610-1250mm
    Color coating (Um)Top:5-25m Back:5-20m
    or as client's requirement
    Paint ColorRAL code No.
    or customer' color sample
    Surface treatmentChromed passivation,
    anti-finger print,skinpassed. Ral color.
    every piece surface can be painted logo
    as customer requirement
    Pallet weight2-5MT or as client's requirement
    QualitySofty , half hard and hard quality
    Supply Ability30000MT/month
    Price ItemFOB, CFR, CIF
    Payment termsT/T, L/C at sight
    Delivery time15-35days after confirmed order
    PackagingExport standard, seaworthy

    • Thick 0.13-1.0/BWG/AWG
    • Width before corrugated 762-1200 mm
    • Width after corrugated 600-1000mm
    • Zinc Coating 30-275G/M2
    • Coating Thickness Top side 15-25 micro; Back side 5-15 micro
    • Color RAL Standard Color or as customer sample
    • Painting Nippon, Akzo Nobel, Winter, or as customer request
    • Weight 2-4 Tons
    • Standard ASTM-A653; JIS G3302; EN10147;etc
    • Regular Order 25 tons or one container, for less quantity, to contact with us for details
    • Hardness Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
    • Surface Structure Regular spangle,Minimum spangle, Zero spangle, Big spangle
    • Surface Treatment Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass

    Pressed corrugated steel sheet (roofing sheet) refers to the steel sheet formed by cold pressing or cold rolling. The steel sheet is made of coloured steel sheet, galvanized steel sheet, stainless steel sheet, aluminium sheet, anticorrosive steel sheet or other thin steel sheet. The profiled steel sheet has the characteristics of light weight, high strength, low price, good seismic performance, fast construction and beautiful appearance.The corrugated metal is a good building material, mainly used for guardrail, floor and other buildings, such as airport terminal, railway station, stadium, concert hall, grand theatre, etc. According to different application requirements, the profiled steel sheet can be pressed into a wave type, a T type, a V type, a rib type and the like.


    If you have any question, please feel free to contact us any time.
