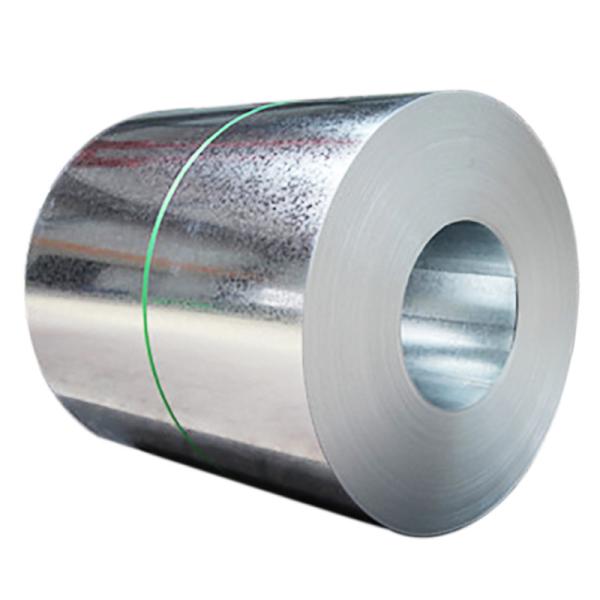

Deep Drawing Galvanised Steel Coil JISG3302 SGCD3 Construction Application

Ask Lasest Price
Brand Name :	JIN LAI
Model Number :	Q195
Certification :	ISO
Price :	negotiable based on the quantity
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	1000 tons per month
Delivery Time :	within 10 days after received the advance

Add to Cart

Product Details
Company Profile

Deep Drawing Galvanised Steel Coil JISG3302 SGCD3 Construction Application

Deep Drawing Quality JISG3302 SGCD3 Hot Dip Galvanized Steel Coil

1. Surface: Chromated, Unoiled, tension-levelled, skin-passed

2. Spangle: regular spangle/ minimum spangle/ zero spangle

3. Coils id: 508mm/610mm or others

4. Size:(0.2-3.0)mm X(1000-1250)mm X C

5. Application: they are mainly used in construction, the light industry, the automobile, agriculture, animal husbandry, and fishery industry and commercial business, etc. in construction industry, it is mainly used to make roof board and grill for industrial and civilian buildings: in light industry, it is mainly used to make casing of household electric appliances, civilian smoke stack, in automobile industry, it is maily used to make the parts of the automobiles, in agriculture, animal husbandry and fishery industry, it is maily used to make the packing equipment, the skin-passed galvanized steel in coils with zero spangle is largely used as the base metal of the color-coated steel sheets.

Galvanized sheet is mainly used: a large number of galvanized sheet plate used in automobile Manufacturing, cooler, construction, ventilation and heating facilities and furniture manufacturing and other field. Galvanized become important steel anticorrosion method, not only because the zinc can be formed in the steel surface protective layer of dense, but also because of the zinc has the effect of catholic protection, when the galvanized layer damaged, it can still through the catholic corrosion protection to prevent the iron base. Construction industry/Household appliances/Furniture industry/Transportation industry. Other instrument shell, dustbin, billboards, clocks, photographic equipment, meter and other hot galvanized steel sheet, color coating steel plate is hot aluminum zinc plate, electric galvanized sheet as the substrate, such as the surface pretreatment

Product Name	GI	GL
STANDARDS	JIS G3302 SGCC SGC340-SGC570	JIS G3321 SGCC SGC340-SGC570
	EN10346 DX51D+Z, DX52D+Z, DX53D+Z, S220GD-S550GD	EN10346 DX51D+AZ, DX52D+AZ, DX53D+AZ, S220GD-S550GD +AZ
	ASTM A653M CS-B, SS230-SS550	ASTM A653M CS-B, SS230-SS550
Thickness	0.12mm-6.0mm	0.12mm-2.5mm
Width	600mm-1500mm	600mm-1500mm
Coil Weight	3~12MT	3~12MT
Coil ID	508mm/610mm	508mm/610mm
Chemical Treatment	Chromated(Cr 3+,6+,0+)	Chromated(Cr 3+,6+,0+)
Surface	Skin-pass/non skin-pass	Skin-pass/non skin-pass
Oil	Oiled/Dry	Oiled/Dry
Spangle	Regular/Zero/Big/Small	Regular
Zinc coating	40g/m2~600g/m2 (both side total coating)	AZ30g/m2~150g/m2 (both side total coating)
Packing	Mill Standard Export Packing	Mill Standard Export Packing

Hot Dip Galvanized coil produced by JIN LAI,is coated with zinc using a continuous and controlled process. The tight metallurgical bond between the steel and coating takes place in a continuous galvanizing line. This process results in a material with the strength and formability of steel and with the corrosion protection provided by zinc. The zinc coating protects the base metal from external corrosive elements in two main ways, by acting as (1) a physical barrier and (2) a sacrificial anode.

Tolerance on Nominal Thickness for galvanized steel

Thickness (mm)	ASTM	½ ASTM
0.18 – 0.40	± 0.040	± 0.020
0.401 – 1.00	± 0.050	± 0.025
1.01 – 1.50	± 0.065	± 0.033
1.51 – 2.00	± 0.075	± 0.038

Note: Restricted gauge ranges and customized thickness tolerances can be offered on request.

Specifications of Glvanized Steel Coils / Sheet

Size	Zinc coat	Material
0.251000C	80	DX51D+Z
0.251000C	80	DX51D+Z
0.31000C	80	DX51D+Z
0.351000C	80	DX51D+Z
0.41000C	80	DX51D+Z
0.51000C	80	S280GD+Z
0.51000C	80	DX51D+Z
0.581000C	80	S350GD+Z
0.61000C	80	DX51D+Z
0.71000C	80	DX51D+Z
0.751000C	80	DX51D+Z
0.81000C	80	DX51D+Z
0.81000C	80	DX53D+Z
0.851000C	80	DX51D+Z
0.91000C	80	DX51D+Z
0.981000C	80	DX51D+Z
0.951000C	80	DX51D+Z
1.01000C	80	DX51D+Z
1.11000C	80	DX51D+Z
1.21000C	80	DX51D+Z
1.21050C	150	CSB
1.41000C	80	DX51D+Z
Size	Zinc coat	Material
1.51000C	80	DX51D+Z
1.551000C	180	S280GD+Z
1.551000C	180	S350GD+Z
1.61000C	80	DX51D+Z
1.81000C	80	DX51D+Z
1.91000C	80	DX51D+Z
1.951000C	180	S350GD
1.981000C	80	DX51D+Z
1.951000C	180	S320GD+Z
1.951000C	180	S280GD+Z
1.951000C	275	S350GD+Z
2.01000C	80	DX51D+Z
Size	Zinc coat	Material
0.361250C	80
0.41250C	80	DX51D+Z
0.421250C	80	DX51D+Z
0.451250C	225	S280GD+Z
0.471250C	225	S280GD+Z
0.51250C	80	SGCC
0.551250C	180	S280GD+Z
0.551250C	225	S280GD+Z
0.61250C	80	DX51D+Z
0.651250C	180	DX51D+Z
0.71250C	80	DX51D+Z
0.71250C	80	SGCC
0.751250C	80	DX51D+Z
0.81250C	80	DX51D+Z
0.91250C	80	DX51D+Z
0.951250C	80	DX51D+Z
Size	Zinc coat	Material
1.01250C	80	DX51D+Z
1.151250C	80	DX51D+Z
1.11250C	80	DX51D+Z
1.21250C	80	DX51D+Z
1.351250C	80	DX51D+Z
1.41250C	80	DX51D+Z
1.51250C	80	DX51D+Z
1.551250C	80	DX51D+Z
1.61250C	120	SGCC
1.61250C	80	DX51D+Z
1.81250C	80	DX51D+Z
1.851250C	90	DX51D+Z
1.951250C	80	DX51D+Z
1.751250C	80	DX51D+Z
2.01250C	80	DX51D+Z
2.01250C	120	SGCC
2.51250C	80	DX51D+Z

If you have any question, please feel free to contact us any time.
