Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate

    Buy cheap Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate from wholesalers

    Buy cheap Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate from wholesalers
    • Buy cheap Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate from wholesalers
    • Buy cheap Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate from wholesalers

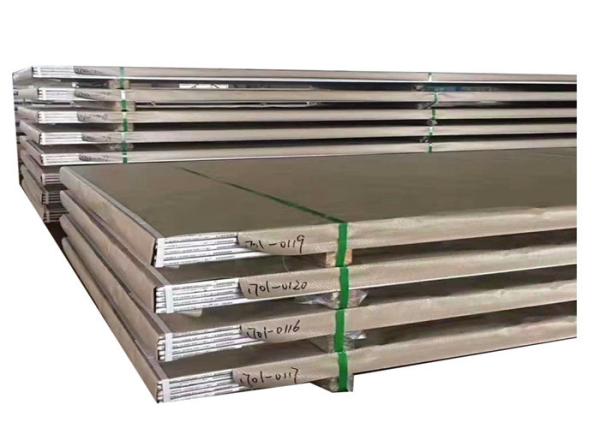

    Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate

    Ask Lasest Price
    Brand Name : JIN LAI
    Model Number : 2507
    Certification : ISO SGS
    Price : negotiable based on the quantity
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 800 tons per month
    Delivery Time : within 15-20 days after deposit
    • Product Details
    • Company Profile

    Petrochemicals Industry Stainless Steel Base Plate Uns S32750 Material Accurate

    ASTM A 240 AND ASTM A 480 Plate 2507 Material SDSS Super Duplex Stainless Steel S32750


    Corrosion Resistance:


    2507 Duplex is highly resistant to uniform corrosion by organic acids such as formic and acetic acid. It is alsohighly resistant to inorganic acids, especially if they contain chlorides. Alloy 2507 is highly resistant to carbide-related intergranular corrosion. Due to the ferritic portion of the duplex structure of the alloy it is very resistant to stress corrosion cracking in warm chloride containing environments. Through additions of chromium, molybdenum and nitrogen localized corrosion such as pitting and crevice attack are improved. Alloy 2507 has excellent localized pitting resistance.


    Duplex 2507 is a super duplex stainless steel designed for applications which demand exceptional strength and corrosion resistance. Alloy 2507 has 25% chromium, 4% molybdenum, and 7% nickel. This high molybdenum, chromium and nitrogen content results in excellent resistance to chloride pitting and crevice corrosion attack and the duplex structure provides 2507 with exceptional resistance to chloride stress corrosion cracking.


    Usage of Duplex 2507 should be limited to applications below 600 Fdegree (316 Centigrade degree). Extended elevated temperature exposure can reduce both the toughness and corrosion resistance of alloy 2507.


    Duplex 2507 possesses excellent mechanical properties. Often a light gauge of 2507 material can be used to achieve the same design strength of a thicker nickel alloy. The resulting savings in weight can dramatically reduce the overall cost of fabrication.


    The characteristics of Duplex 2507:

    1. High resistance to chloride stress corrosion cracking
    2. High Strength
    3. Superior resistance to chloride pitting and crevice corrosion
    4. Good general corrosion resistance
    5. Suggested for applications up to 600 F degree
    6. Low rate of thermal expansion
    7. Combination of properties given by austenitic and ferritic structure
    8. Good weldability and workability

    Chemical Composition, (%):

    1. Cr 24.0-26.0 Si 0.80 Max
    2. Ni 6.0-8.0 Cu 0.50 Max
    3. Mo 3.0-5.0 P 0.035 Max
    4. C 0.030 Max S 0.020 Max
    5. N .24-.32 Fe Bal
    6. Mn 1.20 Max


    Applications is Duplex 2507:

    • Desalination Equipment
    • Chemical process pressure vessels, piping and heat exchangers
    • Marine Applications
    • Flue Gas Scrubbing Equipment
    • Pulp & Paper Mill Equipment
    • Offshore Oil production/technology
    • Oil and gas industry equipment

    Product name2507 Super Duplex Steel Plate
    Brand nameJIN LAI
    StandardASTM A240, ASTM A480, EN10088, JIS G4305
    Material304, 316L, 321, 310S, 1.4301, 1.4307, 1.4404, S31803, S32750, 904L, Monel 400, Inconel 800
    SurfaceNO.1,2B,NO.4,BA,SB,Satin,Brushed,Hairline,Mirror
    Payment termsT/T L/C WESTERN UNION
    PackingIn wooden cases,in wooden pallets
    ShipmentBy sea, by air, by express

    Packing and delivery
