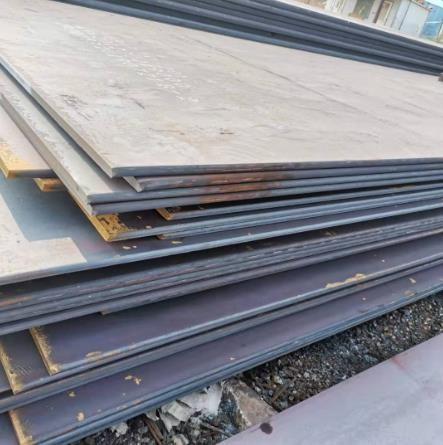

High Manganese Mn13 Wear Resistant Steel Plate

Ask Lasest Price
Brand Name :	JIN LAI
Model Number :	Mn13
Certification :	ISO
Price :	negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	800 tons per month
Delivery Time :	5-8 work days and depend on the quantity

Add to Cart

Product Details
Company Profile

High Manganese Mn13 Wear Resistant Steel Plate

Mn13 High Manganese Alloy Steel Plate Wear Resistant Steel Plate

Product Description

Size	Thickness	3-3000mm
	Width	0.6m-3m or as required
	Length	4m-12m or as required
Standard		AISI,ASTM,GB,DIN,BS,JIS
Grade		Ar500/xar450 500 600/nm400 500 600
Inspection		X-ray inspection, manual ultrasopic inspection,surface inspection,hydraulic testing
Technique		Hot Rolled
Section Shape		Flat
Productivity		5000 Tons/month
Packing		covered with a layer of plastic film and cardboard , packed on the wooden pallets , bound with iron belt , loaded in the containers
Surface Treatment		Black Painted, PE Coated, Galvanized or Customized all available
Remarks		1.Payment Terms T/T, L/C,
		2.Trade Term:FOB/CFR/CIF , discussible
		3.Minimum Quantity of Order: 2 Tons
		4.Delivery Time:7-15 days after receipt of deposit


Mechanical property
Grade	Tensile strength (Mpa)	Elongation (%)(min)	Hardness (HBW)	-20℃ Impact AKv/J (min)
NM360	≥1100	12	330-390	24
NM400	≥1200	10	370-430	24
NM450	≥1250	7	420-480	24
NM500			470(min)
NM550			530(min)
NM600			570(min)


Mechanical property
Grade	Yield strength (Mpa)	Hardness (HB)	Impact energy
HARDOX400	900-1100	370-430	45J/-40℃
HARDOX450	1100-1300	425-475	50 J/-40℃
HARDOX500	1250-1400	470-540	37 J/-40℃
HARDOX550		525-575	30 J/-40℃
HARDOX600		550-640

Our company can produce low alloy high strength abrasion resistant steels of grade NM360, NM400, NM450, NM500, NM550 and NM600 which have high strength and good abrasion resistant properties, good toughness and weldability, excellent processing properties and formability. Good performances of our company’s plates have been positively proven in different climates, terrains and environments.

These grades of plates are mainly applied for excavators, front wheel loaders, tippers bodies, conveyers, chutes, containers,

crushers, fragmentizes, mixers, sieves, demolition tools and barges. Our company’s abrasion resistant plates maximize the abrasion

resistant performance of products, reduce the risk of accidental shutdown and contribute to making precise equipment maintenance plan as per different situations and the service of life is doubled,tripled or even five times multiplied.in the mean time,the plates can make the final products and machines get lighter weight themselves,longer life and reduce emission of co2,because of the combination of material’s high hardness, good toughness and high strength.

PACKAGE PER BUNDLE

1.Reinforcement of angle in steel wore rodcircles or according to customer's requirements.
2.Package in PVC material or according to customer's requirements
