1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter

    Buy cheap 1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter from wholesalers

    Buy cheap 1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter from wholesalers
    • Buy cheap 1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter from wholesalers
    • Buy cheap 1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter from wholesalers
    • Buy cheap 1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter from wholesalers
    • Buy cheap 1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter from wholesalers

    1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter

    Ask Lasest Price
    Brand Name : JIN LAI
    Model Number : s355j2w n
    Certification : ISO
    Price : negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 800 tons per month
    Delivery Time : 5-8 work days and depend on the quantity
    • Product Details
    • Company Profile

    1.6mm-16mm A243 Corten Wear Resistant Steel Plate For Planter

    1.6mm~16mm A243 Corten Wear-Resistant Steel Plate Used For Planter

    Product Description

    Product Name
    Spa-H JIS G3125 Q345GNHL 09CuPCrNiA Weather resistant corten steel plate
    Material
    Corten A/B A588 Gr A/B/C A242 Type 1 A606 Type 4 SPA-H Q345GNHL Q235NH, Q355NH 09CuP S235JOW S235J2W S355JOWP S355J2WP S355JOW
    09CuPCrNi-A,09CuP, 09CuPCrNiA, 09CrCuSb
    Q355NH,Q460NH,Q345GNHL,Q345GNHL,Q355GNH,Q345GNH,Q295NH,Q295NH,Q295NH,Q310GNH,Q345NH,Q235NH,Q500NH,Q235GNH,Q550NH,Q265GNH,Q295GNH,Q450NQR1
    S355J0W,S355J2WP,S355J2W,S235J0W,SPA-H
    B480GNQR
    Standard
    ASTM A588 A242 A606 EN10025 JIS G3125 GB/T 4171
    Packing Detail
    Standard export package:Wooden pallet +paperboard +steel strip
    Customized requirements are accepted
    Delivery time
    Usually 15-25 dyas, or upon negotiation
    Trade Terms
    EXW,FOB,CIF CFR
    Payment terms
    30% T/T IN ADVANCE , 70% BALANCE AGAINST B/L COPY. or 100% L/C at sight.
    Technique process
    Laser cutting > perforating or bending > welding & polishing > surface treatment > packaging
    Surface treatment
    Pre-rusted
    Application
    Used for facade, screens, room dividers and other decorations
    Technique
    HOT ROLLED
    Thickness tolerance
    ±0.1MM
    MOQ
    25tons.We also can accept sample order.
    Length
    as required

    Product details

    Chemical Composition Of Weathering Steel Grades(%.besides irom)
    GradeCSiMnPSCrCuVNi
    ASTM A2420.120.25-0.750.2-0.50.01-0.200.0300.5-1.250.25-0.55---0.65
    ASTM A 5880.160.3-0.500.8-1.250.0300.0300.4-0.650.25-0.400.02-0.100.40

    Chemical Composition
    GradeC%Si%Mn%P%S%Cr%Cu%V%Ni%
    Corten A0.120.25-0.750.20-0.500.07-0.150.0300.5-1.250.25-0.55---

    0.65

    Corten B0.190.30-0.650.80-1.250.0350.0300.4-0.650.25-0.400.02-0.100.40

    Mechanical Properties
    GradeMinimum Yield Point
    ReH Mpa
    Tensile Strength
    Rm Mpa
    Minimum Elongation A
    (L0=5.65 √So) %
    Corten A34548520
    Corten B345485

    19

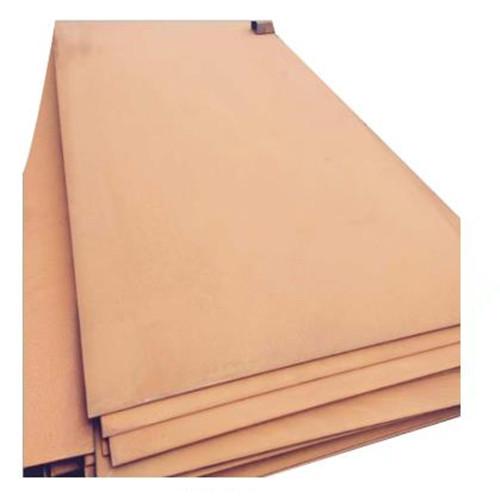

    Product show

    Weathering steel manufacturing process
    Weathering steel generally adopts fine material into furnace-smelting (converter, electric furnace-microalloying
    treatment-argon-LF refining-low superheat continuous casting (feeding rare earth wire)-controlled rolling and cooling)

    Weathering steel characteristics
    It refers to a low-alloy structural steel with a protective rust layer that is resistant to atmospheric corrosion and can be used to manufacture steel structures such as vehicles, bridges, towers, and containers. Compared with plain carbon steel, weathering steel has better corrosion resistance in the atmosphere. Compared with stainless steel, weathering steel has only a small amount of alloying elements, such as phosphorus, copper, chromium, nickel, molybdenum, niobium, vanadium, titanium, etc., the total amount of alloying elements is only a few percent, not like stainless steel, reaching 100 More than a dozen, so the price is relatively low.

    Wear-resistant steel plate has high wear resistance and good impact performance. It can be cut, bent, welded, etc. It can be connected with other structures by welding, plug welding, bolting, etc. It has time saving in the process of maintenance. And convenient features.

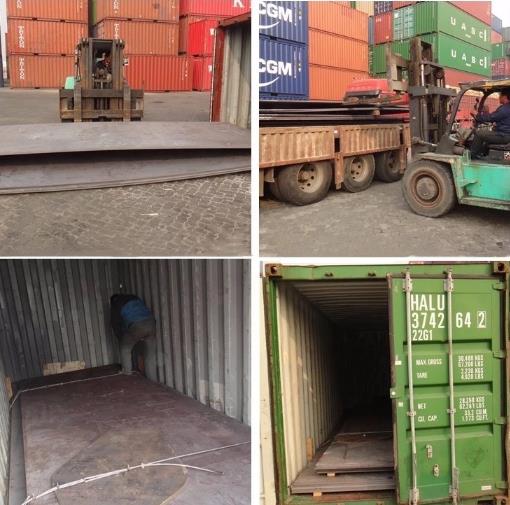

    Packing&Shipping
    Packing Details: Waterproof paper, and steel strip packed.
    Standard Export Seaworthy Package.Suit for all kinds of transport,or as required. Delivery Details : 5~7 days after order of the deposit.
    1).20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
    2).40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
    3).40ft HC:12032mm(Lengh)x2352mm(Width)x2698mm(High)


    If you have any question, please feel free to contact us any time.
